Generate single-cell images

Here, we are going to process the previously ingested microscopy images with the scPortrait pipeline to generate single-cell images that we can use to assess autophagosome formation at a single-cell level.

import lamindb as ln
from collections.abc import Iterable

from pathlib import Path
from scportrait.pipeline.extraction import HDF5CellExtraction
from scportrait.pipeline.project import Project
from scportrait.pipeline.segmentation.workflows import CytosolSegmentationCellpose

ln.track()

Show code cell output Hide code cell output

→ connected lamindb: testuser1/test-sc-imaging

→ created Transform('fZem7hpCe5eb0000', key='sc-imaging2.ipynb'), started new Run('JROGRV3Jcyc6PQfu') at 2026-07-30 06:12:43 UTC

→ notebook imports: lamindb-core==2.8.1 scportrait==1.8.0

• tip: to identify the notebook across renames, pass the uid: ln.track("fZem7hpCe5eb")

Query microscopy images

First, we query for the raw and annotated microscopy images.

input_images = ln.Artifact.filter(
    ulabels__name="autophagy imaging", description__icontains="raw image", suffix=".tif"
)

The experiment includes two genotypes (WT and EI24KO) under two treatment conditions (unstimulated vs. 14h Torin-1). Multiple clonal cell lines were imaged for each condition across several fields of view (FOVs) and imaging channels.

We’ll extract single-cell images from each FOV and annotate them with metadata including genotype, treatment condition, clonal cell line, and imaging experiment.

input_images_df = input_images.to_dataframe(features=True)

display(input_images_df.head())

conditions = input_images_df["stimulation"].unique().tolist()
cell_line_clones = input_images_df["cell_line_clone"].unique().tolist()
FOVs = input_images_df["FOV"].unique().tolist()

Show code cell output Hide code cell output

! truncated query result to limit=20 Artifact objects

/tmp/ipykernel_3204/1645869880.py:1: DeprecationWarning: `features=True` is deprecated, pass `include="features"` instead.
  input_images_df = input_images.to_dataframe(features=True)

	uid	key	genotype	stimulation	cell_line_clone	channel	FOV	magnification	microscope	imaged structure	resolution	study
id
49	AVRTVX9gEu4LrTAP0000	input_data_imaging_usecase/images/Timepoint001...	EI24KO	untreated	U2OS lcklip-mNeon mCherryLC3B EI24 KO clone 2	mCherry	FOV2	20X	Opera Phenix	mCherry-LC3B	0.597976	autophagy imaging
48	6uUjyphUD4D1Hixc0000	input_data_imaging_usecase/images/Timepoint001...	EI24KO	untreated	U2OS lcklip-mNeon mCherryLC3B EI24 KO clone 2	mCherry	FOV1	20X	Opera Phenix	mCherry-LC3B	0.597976	autophagy imaging
47	AhBvnNKg5yJcG6LU0000	input_data_imaging_usecase/images/Timepoint001...	EI24KO	untreated	U2OS lcklip-mNeon mCherryLC3B EI24 KO clone 2	DAPI	FOV2	20X	Opera Phenix	DNA	0.597976	autophagy imaging
46	Cvamog4G3a2XYGM80000	input_data_imaging_usecase/images/Timepoint001...	EI24KO	untreated	U2OS lcklip-mNeon mCherryLC3B EI24 KO clone 2	DAPI	FOV1	20X	Opera Phenix	DNA	0.597976	autophagy imaging
45	Oww4y0yYuR8pxV9q0000	input_data_imaging_usecase/images/Timepoint001...	EI24KO	untreated	U2OS lcklip-mNeon mCherryLC3B EI24 KO clone 2	Alexa488	FOV2	20X	Opera Phenix	LckLip-mNeon	0.597976	autophagy imaging

Alternatively, we can query for the ULabel directly:

conditions = ln.ULabel.filter(
    links_artifact__feature__name="stimulation", artifacts__in=input_images
).distinct()

cell_line_clones = ln.ULabel.filter(
    links_artifact__feature__name="cell_line_clone", artifacts__in=input_images
).distinct()

FOVs = ln.ULabel.filter(
    links_artifact__feature__name="FOV", artifacts__in=input_images
).distinct()

By iterating through conditions, cell lines and FOVs, we should only have 3 images showing a single FOV to enable processing using scPortrait.

# Create artifact type feature and associated label
ln.Feature(name="artifact type", dtype=ln.ULabel).save()
ln.ULabel(name="scportrait config").save()

# Load config file for processing all datasets
config_file_af = ln.Artifact.connect("scportrait/examples").get(
    key="input_data_imaging_usecase/config.yml"
)

config_file_af.description = (
    "config for scportrait for processing of cells stained for autophagy markers"
)
config_file_af.save()

# Annotate the config file with the metadata relevant to the study
config_file_af.features.add_values(
    {"study": "autophagy imaging", "artifact type": "scportrait config"}
)

Show code cell output Hide code cell output

→ transferred: Artifact(uid='voi8szTkmKPiahUA0000')

Process images with scPortrait

Let’s take a look at the processing of one example FOV.

# Get input images for one example FOV
condition, cellline, FOV = conditions[0], cell_line_clones[0], FOVs[0]

images = (
    input_images.filter(ulabels=condition)
    .filter(ulabels=cellline)
    .filter(ulabels=FOV)
    .distinct()
)

# Quick sanity check - all images should share metadata except channel/structure
values_to_ignore = ["channel", "imaged structure"]
features = images.first().features.get_values()
shared_features = {k: v for k, v in features.items() if k not in values_to_ignore}

for image in images:
    image_features = image.features.get_values()
    filtered_features = {
        k: v for k, v in image_features.items() if k not in values_to_ignore
    }
    assert shared_features == filtered_features

# Get image paths in correct channel order
input_image_paths = [
    images.filter(ulabels__name=channel).one().cache()
    for channel in ["DAPI", "Alexa488", "mCherry"]
]

# Create output directory and unique project ID
output_directory = "processed_data"
unique_project_id = f"{shared_features['cell_line_clone']}/{shared_features['stimulation']}/{shared_features['FOV']}".replace(
    " ", "_"
)
project_location = f"{output_directory}/{unique_project_id}/scportrait_project"

# Create directories
Path(project_location).mkdir(parents=True, exist_ok=True)

# Initialize the scPortrait project
project = Project(
    project_location=project_location,
    config_path=config_file_af.cache(),
    segmentation_f=CytosolSegmentationCellpose,
    extraction_f=HDF5CellExtraction,
    overwrite=True,
)

# Load images and process
project.load_input_from_tif_files(
    input_image_paths, overwrite=True, channel_names=["DAPI", "Alexa488", "mCherry"]
)
project.segment()
project.extract()

Show code cell output Hide code cell output

Updating project config file.

/tmp/ipykernel_3204/1211438391.py:12: UserWarning: There is already a directory in the location path
  project = Project(

  0%|          | 0.00/25.3M [00:00<?, ?B/s]

  0%|          | 80.0k/25.3M [00:00<00:37, 707kB/s]

  1%|          | 272k/25.3M [00:00<00:20, 1.28MB/s]

  2%|▏         | 560k/25.3M [00:00<00:14, 1.84MB/s]

  4%|▍         | 1.09M/25.3M [00:00<00:08, 3.04MB/s]

  9%|▊         | 2.20M/25.3M [00:00<00:04, 5.52MB/s]

 17%|█▋        | 4.39M/25.3M [00:00<00:02, 10.3MB/s]

 30%|██▉       | 7.56M/25.3M [00:00<00:01, 16.0MB/s]

 59%|█████▊    | 14.9M/25.3M [00:00<00:00, 31.2MB/s]

 89%|████████▉ | 22.6M/25.3M [00:01<00:00, 42.7MB/s]

100%|██████████| 25.3M/25.3M [00:01<00:00, 24.6MB/s]

  0%|          | 0.00/3.54k [00:00<?, ?B/s]

100%|██████████| 3.54k/3.54k [00:00<00:00, 19.1MB/s]

/opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/cellpose/dynamics.py:760: UserWarning: Sparse invariant checks are implicitly disabled. Memory errors (e.g. SEGFAULT) will occur when operating on a sparse tensor which violates the invariants, but checks incur performance overhead. To silence this warning, explicitly opt in or out. See `torch.sparse.check_sparse_tensor_invariants.__doc__` for guidance.  (Triggered internally at /__w/pytorch/pytorch/aten/src/ATen/Context.cpp:816.)
  coo = torch.sparse_coo_tensor(pt, torch.ones(pt.shape[1], device=pt.device, dtype=torch.int),

  0%|          | 0.00/25.3M [00:00<?, ?B/s]

  0%|          | 80.0k/25.3M [00:00<00:37, 705kB/s]

  1%|          | 288k/25.3M [00:00<00:21, 1.24MB/s]

  2%|▏         | 640k/25.3M [00:00<00:12, 2.04MB/s]

  5%|▍         | 1.20M/25.3M [00:00<00:07, 3.23MB/s]

  9%|▉         | 2.33M/25.3M [00:00<00:04, 5.65MB/s]

 17%|█▋        | 4.39M/25.3M [00:00<00:02, 10.5MB/s]

 32%|███▏      | 8.08M/25.3M [00:00<00:01, 18.0MB/s]

 56%|█████▋    | 14.3M/25.3M [00:00<00:00, 28.5MB/s]

 87%|████████▋ | 22.1M/25.3M [00:01<00:00, 40.0MB/s]

100%|██████████| 25.3M/25.3M [00:01<00:00, 24.3MB/s]

  0%|          | 0.00/3.54k [00:00<?, ?B/s]

100%|██████████| 3.54k/3.54k [00:00<00:00, 17.2MB/s]

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd87c781790>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd8c8aa2f30>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c9fbf50>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c387f80>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c3d27e0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd8c8c14560>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c3d6b70>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd8c8442ba0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c38d190>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c22b080>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c22ed80>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c2b7050>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd8c8c63080>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c9e26c0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c8f7980>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c9f8230>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c8322d0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c8c3080>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86cd095e0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86cd49880>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c9dbdd0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86cd080e0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c813080>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c8f5c70>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c697710>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c9bd3a0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c8732f0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c810230>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86cd0ad50>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86caca750>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86cd53ce0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c8c31a0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c810830>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd8c7e1ffe0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86cea5400>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c812090>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86c8b0c80>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd8c7f42e10>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd87c52a5a0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd87c411a90>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86cd937a0>: None

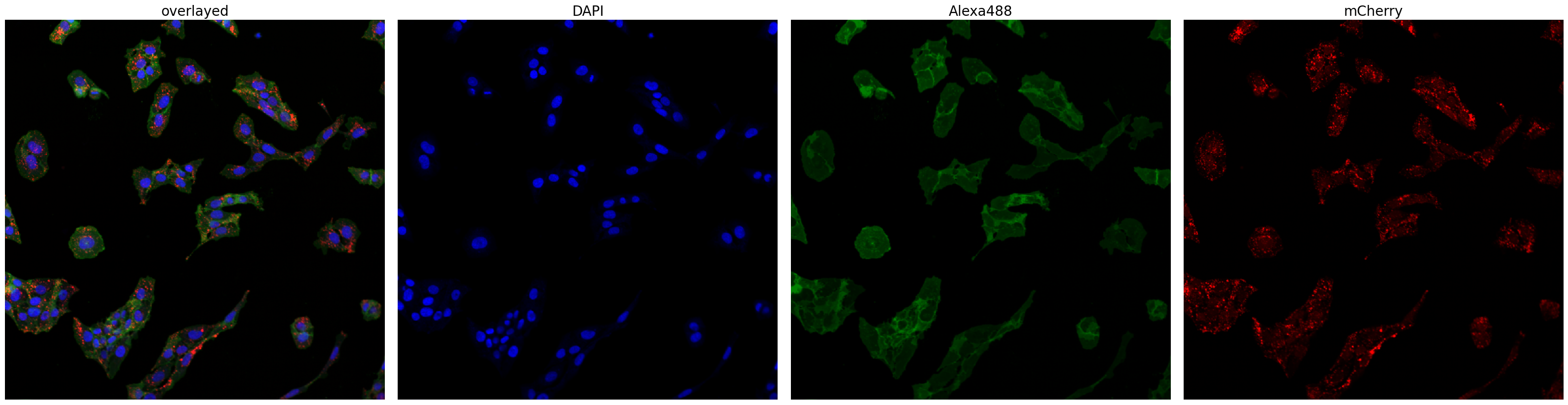

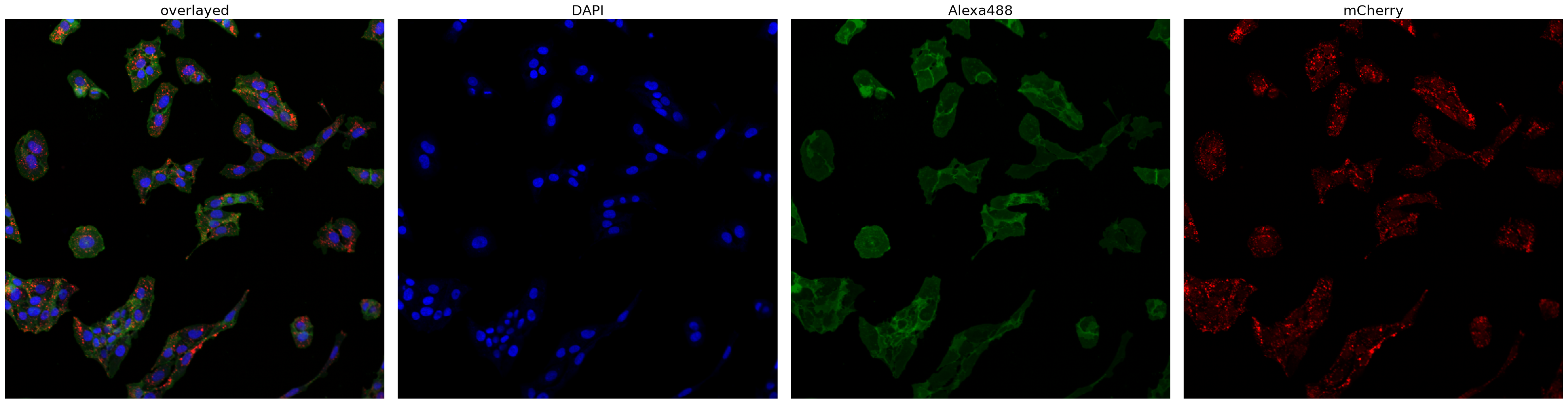

Let’s look at the input images we processed.

project.plot_input_image()

Show code cell output Hide code cell output

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86ce96180>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd86ce4ed50>: None

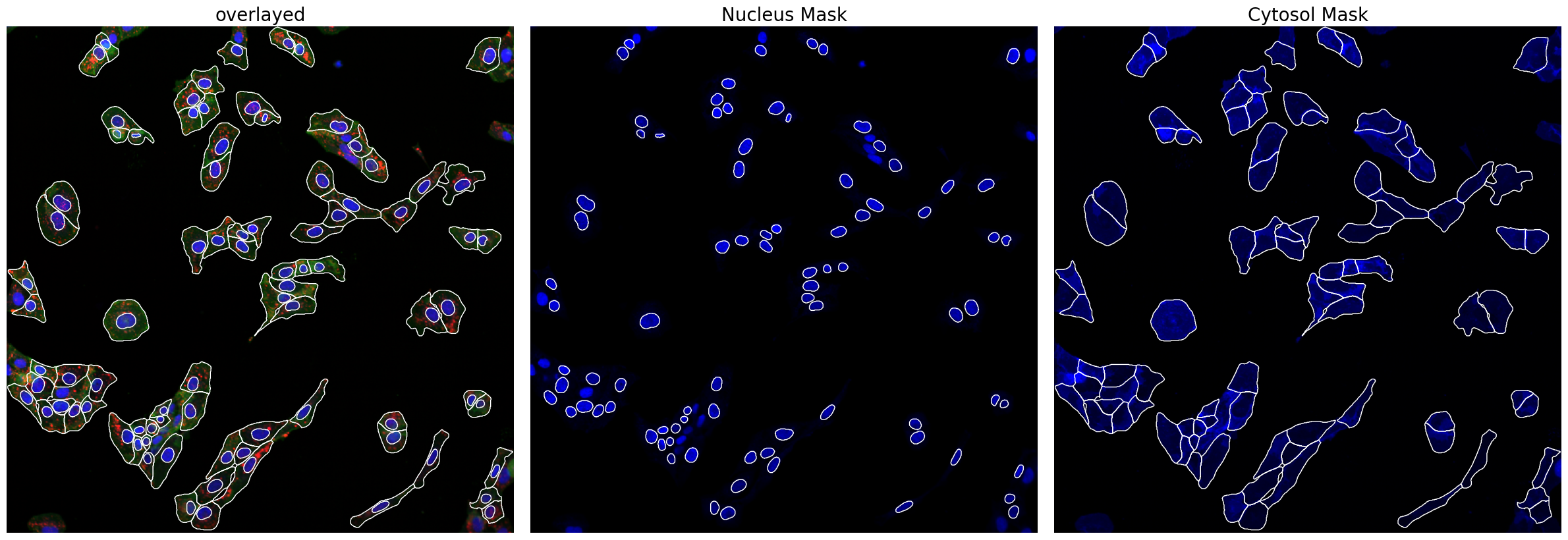

Now we can look at the results generated by scPortrait. First, the segmentation masks.

project.plot_segmentation_masks()

Show code cell output Hide code cell output

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd87c3c4fe0>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd87c6b6750>: None

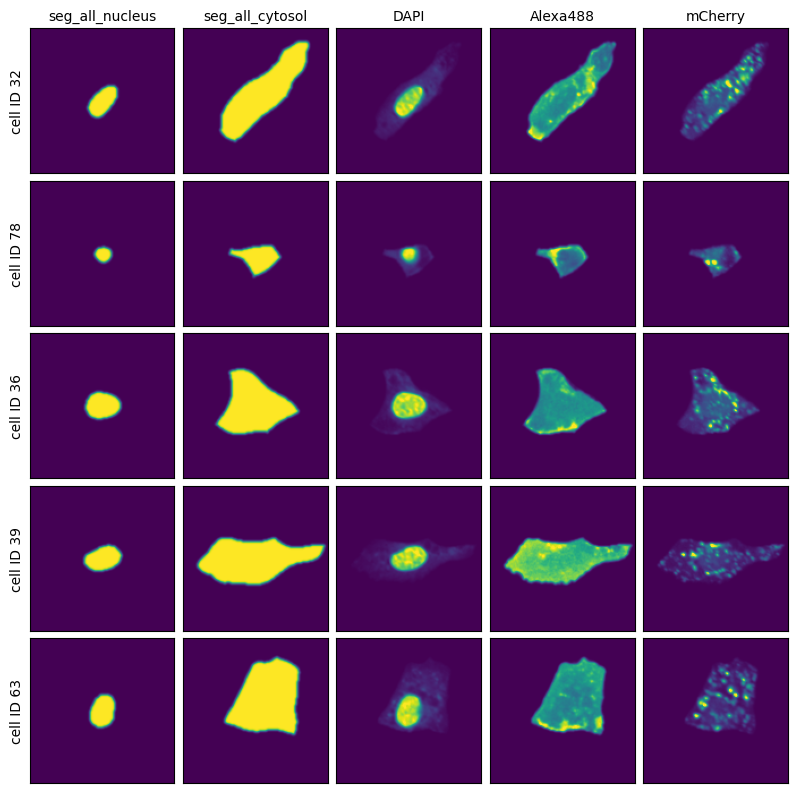

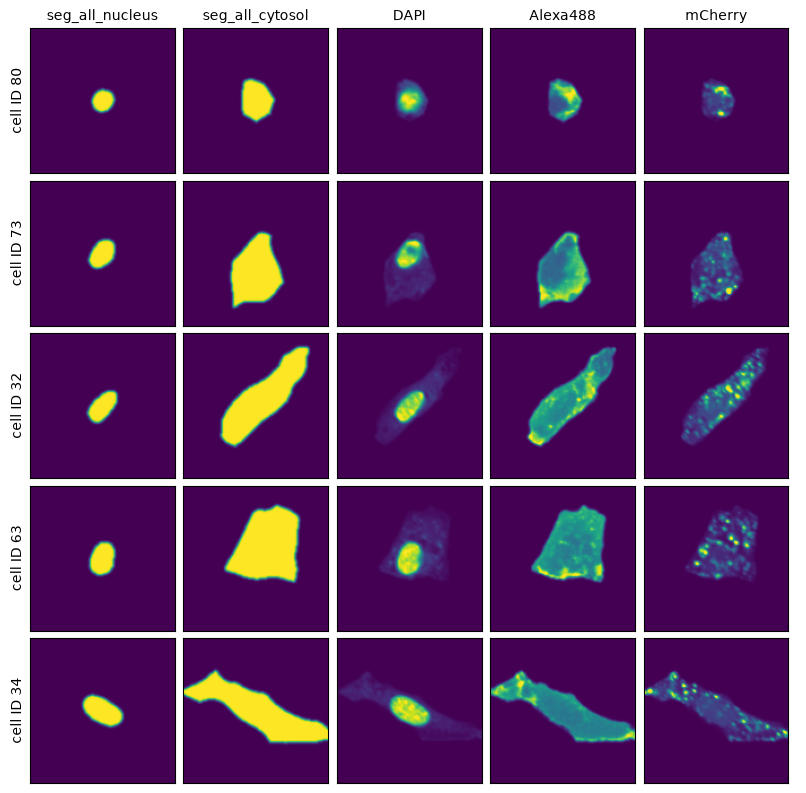

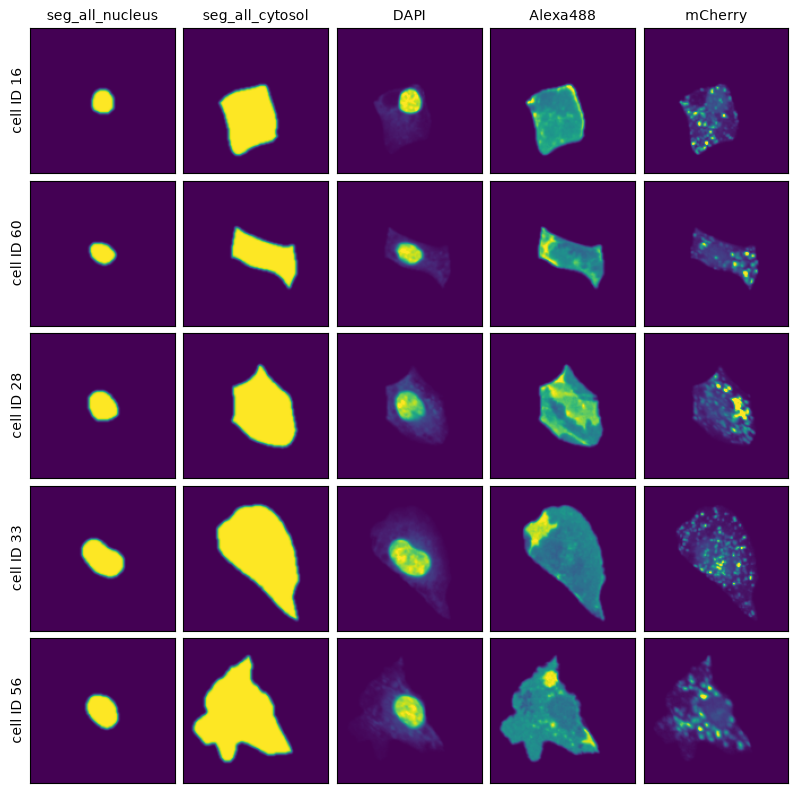

And then extraction results consisting of individual single-cell images over all of the channels.

project.plot_single_cell_images()

Show code cell output Hide code cell output

Save and annotate results

Now we also want to save these results to the instance.

ln.Artifact.from_spatialdata(
    sdata=project.filehandler.get_sdata(),
    description="scportrait spatialdata object containing results of cells stained for autophagy markers",
    key=f"processed_data_imaging_use_case/{unique_project_id}/spatialdata.zarr",
).save()

Show code cell output Hide code cell output

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd8c8ae6180>: None

WARNING:ome_zarr.reader:no parent found for <ome_zarr.reader.Label object at 0x7fd8c89c0380>: None

Artifact(uid='75KTOtSy3z3IYoT00000', key='processed_data_imaging_use_case/U2OS_lcklip-mNeon_mCherryLC3B_clone_1/14h_Torin-1/FOV1/spatialdata.zarr', description='scportrait spatialdata object containing results of cells stained for autophagy markers', suffix='.zarr', kind='dataset', otype='SpatialData', size=5806980, hash='fOxQvTiXkoKAUrE9NARA8Q', n_files=67, n_observations=None, extra_data=None, branch_id=1, created_on_id=1, space_id=1, storage_id=1, run_id=3, schema_id=None, created_by_id=1, created_at=2026-07-30 06:14:00 UTC, is_locked=False, version_tag=None, is_latest=True)

# Define schemas for single-cell image dataset
schemas = {
    "obs": ln.Schema(
        name="single-cell image dataset schema obs",
        features=[
            ln.Feature(name="scportrait_cell_id", dtype="int", coerce_dtype=True).save()
        ],
    ).save(),
    "uns": ln.Schema(
        name="single-cell image dataset schema uns",
        features=[ln.Feature(name="single_cell_images", dtype=dict).save()],
    ).save(),
}

# Create composite schema
h5sc_schema = ln.Schema(
    name="single-cell image dataset",
    otype="AnnData",
    slots=schemas,
).save()

Show code cell output Hide code cell output

! rather than passing a string 'int' to dtype, consider passing a Python object

! you are trying to create a record with name='single-cell image dataset schema uns' but a record with similar name exists: 'single-cell image dataset schema obs'. Did you mean to load it?

! you are trying to create a record with name='single-cell image dataset' but records with similar names exist: 'single-cell image dataset schema obs', 'single-cell image dataset schema uns'. Did you mean to load one of them?

/tmp/ipykernel_3204/1081745476.py:6: DeprecationWarning: `coerce_dtype` argument was renamed to `coerce` and will be removed in a future release.
  ln.Feature(name="scportrait_cell_id", dtype="int", coerce_dtype=True).save()

# Curate the AnnData object
curator = ln.curators.AnnDataCurator(project.h5sc, h5sc_schema)
curator.validate()

# Save artifact with annotations
artifact = curator.save_artifact(
    key=f"processed_data_imaging_use_case/{unique_project_id}/single_cell_data.h5ad"
)

# Add metadata and labels
annotation = shared_features.copy()
annotation["imaged structure"] = [
    ln.ULabel.connect("scportrait/examples").get(name=name)
    for name in ["LckLip-mNeon", "DNA", "mCherry-LC3B"]
]

artifact.features.add_values(annotation)
artifact.labels.add(ln.ULabel(name="scportrait single-cell images").save())

Show code cell output Hide code cell output

→ returning schema with same hash: Schema(uid='xFyTv341s5w7cJvU', is_type=False, name='single-cell image dataset schema obs', description=None, n_members=1, coerce=None, flexible=False, itype='Feature', otype=None, suffix=None, hash='dWrCpMz_01OLVTjQfO9PXQ', minimal_set=True, ordered_set=False, maximal_set=False, branch_id=1, created_on_id=1, space_id=1, created_by_id=1, run_id=3, type_id=None, created_at=2026-07-30 06:14:00 UTC, is_locked=False)

→ returning schema with same hash: Schema(uid='iXK6tTKx1ukcgrdX', is_type=False, name='single-cell image dataset schema uns', description=None, n_members=1, coerce=None, flexible=False, itype='Feature', otype=None, suffix=None, hash='FYA7DOlWIagHtcaGRnOIRg', minimal_set=True, ordered_set=False, maximal_set=False, branch_id=1, created_on_id=1, space_id=1, created_by_id=1, run_id=3, type_id=None, created_at=2026-07-30 06:14:00 UTC, is_locked=False)

To process all files in our dataset efficiently, we’ll create a custom image processing function. We decorate this function with tracked() to track data lineage of the input and output artifacts.

The function will skip files that have already been processed and uploaded, improving processing time by avoiding redundant computations.

@ln.tracked()
def process_images(
    config_file_af: ln.Artifact,
    input_artifacts: Iterable[ln.Artifact],
    h5sc_schema: ln.Schema,
    output_directory: str,
) -> None:
    # Quick sanity check - all images should share metadata except channel/structure
    values_to_ignore = ["channel", "imaged structure"]
    first_features = input_artifacts.first().features.get_values()
    shared_features = {
        k: v for k, v in first_features.items() if k not in values_to_ignore
    }

    for artifact in input_artifacts:
        artifact_features = artifact.features.get_values()
        filtered_features = {
            k: v for k, v in artifact_features.items() if k not in values_to_ignore
        }
        assert shared_features == filtered_features

    # Create a unique project ID
    unique_project_id = f"{shared_features['cell_line_clone']}/{shared_features['stimulation']}/{shared_features['FOV']}".replace(
        " ", "_"
    )

    # Check if already processed
    base_key = f"processed_data_imaging_use_case/{unique_project_id}"
    try:
        ln.Artifact.connect("scportrait/examples").get(
            key=f"{base_key}/single_cell_data.h5ad"
        )
        ln.Artifact.connect("scportrait/examples").get(
            key=f"{base_key}/spatialdata.zarr"
        )
        print("Dataset already processed. Skipping.")
        return
    except ln.Artifact.DoesNotExist:
        pass

    # Get image paths in channel order
    input_image_paths = [
        input_artifacts.filter(ulabels__name=channel).one().cache()
        for channel in ["DAPI", "Alexa488", "mCherry"]
    ]

    # Setup and process project
    project_location = f"{output_directory}/{unique_project_id}/scportrait_project"
    Path(project_location).mkdir(parents=True, exist_ok=True)

    project = Project(
        project_location=project_location,
        config_path=config_file_af.cache(),
        segmentation_f=CytosolSegmentationCellpose,
        extraction_f=HDF5CellExtraction,
        overwrite=True,
    )

    project.load_input_from_tif_files(
        input_image_paths, overwrite=True, channel_names=["DAPI", "Alexa488", "mCherry"]
    )
    project.segment()
    project.extract()

    # Save single-cell images
    curator = ln.curators.AnnDataCurator(project.h5sc, h5sc_schema)
    curator.validate()
    artifact = curator.save_artifact(key=f"{base_key}/single_cell_data.h5ad")

    annotation = shared_features.copy()
    annotation["imaged structure"] = [
        ln.ULabel.connect("scportrait/examples").get(name=name)
        for name in ["LckLip-mNeon", "DNA", "mCherry-LC3B"]
    ]

    artifact.features.add_values(annotation)
    artifact.labels.add(ln.ULabel.get(name="scportrait single-cell images"))

    # Save SpatialData object
    ln.Artifact.from_spatialdata(
        sdata=project.filehandler.get_sdata(),
        description="scportrait spatialdata object containing results of cells stained for autophagy markers",
        key=f"{base_key}/spatialdata.zarr",
    ).save()

Show code cell output Hide code cell output

/tmp/ipykernel_3204/2251390660.py:1: DeprecationWarning: Use step instead of tracked, tracked will be removed in the future.
  @ln.tracked()

Now we are ready to process all of our input images and upload the generated single-cell image datasets back to our instance.

for condition in conditions:
    for cellline in cell_line_clones:
        for FOV in FOVs:
            images = (
                input_images.filter(ulabels=condition)
                .filter(ulabels=cellline)
                .filter(ulabels=FOV)
                .distinct()
            )

            if images:
                process_images(
                    config_file_af,
                    input_artifacts=images,
                    h5sc_schema=h5sc_schema,
                    output_directory=output_directory,
                )

Show code cell output Hide code cell output

→ ignoring transform with same filename in different folder:
    fZem7hpCe5eb0000 → sc-imaging2.ipynb

→ created Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('hLREebKAKZu0PFep', entrypoint='process_images') at 2026-07-30 06:14:00 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[Md4OouMExlWS2YfZ0000]', 'Artifact[CiQYTBNZrj0CPejK0000]', 'Artifact[YGiNq6DPfIEjtt9j0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('lAcSv9Oc2GoqO4Kw', entrypoint='process_images') at 2026-07-30 06:14:01 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[KKbVRkOjQ1jdA2fx0000]', 'Artifact[W6tzE7JNiM80Ruho0000]', 'Artifact[uuh41FAHEz0ASL2N0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('gKV8t4ysq5FyCkQd', entrypoint='process_images') at 2026-07-30 06:14:02 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[yiIMSAddDWgLgki70000]', 'Artifact[DEzw4QQAsjVZ010b0000]', 'Artifact[hbVyCGFARHU91Kax0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('46VUubJIdnqKw8LZ', entrypoint='process_images') at 2026-07-30 06:14:02 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[2ie2Kjzn1O7UYhuq0000]', 'Artifact[fOQSb7JCK67aeN6a0000]', 'Artifact[qHQpdWcFu7FzF6l50000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('2dXoHV4c5Zn5lvsp', entrypoint='process_images') at 2026-07-30 06:14:03 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[jVytS8AyAHmHkYR30000]', 'Artifact[cw4F6bUB9zuMthCY0000]', 'Artifact[7TZGXvbA0JLL68hR0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('TruDVLf5gLfm5jPk', entrypoint='process_images') at 2026-07-30 06:14:04 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[vCVbKkzz4CnJPPKF0000]', 'Artifact[5kMhlcDNek4RMeQF0000]', 'Artifact[9BmbViqMmlVhpfS00000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('hlj8CzUYauubgffL', entrypoint='process_images') at 2026-07-30 06:14:04 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[OS0wBE7bviIlW7qj0000]', 'Artifact[ixOpuSTsyrPXdYuA0000]', 'Artifact[6uMjKAk1aYlAV7Cf0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('AR06GPHyvwhA584g', entrypoint='process_images') at 2026-07-30 06:14:05 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[9ZVngbl0JUS0XdZ70000]', 'Artifact[IzP3IAwIhmM7OORD0000]', 'Artifact[RRVS8qVx3VSw02Xu0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('IUPIVuQ9MdKDGsWr', entrypoint='process_images') at 2026-07-30 06:14:06 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[Gtwi9Pcyx8maQEWB0000]', 'Artifact[sHHpiiFYWsIXMZNV0000]', 'Artifact[hNMkrIHce1XrLZHY0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('HeJNGwTTtCSiGYQJ', entrypoint='process_images') at 2026-07-30 06:14:07 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[nSZhAypqiNZ2Ylbe0000]', 'Artifact[jzqxtoduIJ3hCbB40000]', 'Artifact[M06liaIzh2OVEuJ40000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('KHifB1VbXYhnv70f', entrypoint='process_images') at 2026-07-30 06:14:07 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[mXWwV1x42Jz9RoSO0000]', 'Artifact[gj0HHnoVpEqbaUJb0000]', 'Artifact[1XnEyqVt6UGXCTmV0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('GIqnQFGrDspquVbM', entrypoint='process_images') at 2026-07-30 06:14:08 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[Ov8FnKzHMNY0XVJa0000]', 'Artifact[Lwk8shsYe0V5bMgd0000]', 'Artifact[YuyVn060M4FxATPz0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('jvVijFfl2ldYLQUR', entrypoint='process_images') at 2026-07-30 06:14:09 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[ThuJnRAhqkp54kyU0000]', 'Artifact[PquYNyshQTDd24Vw0000]', 'Artifact[8SFUmW0RhBNySxBO0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('PKs35deeaBVEPgky', entrypoint='process_images') at 2026-07-30 06:14:09 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[h4EKWveW36LIzXez0000]', 'Artifact[fdem35nw5ztUnEIM0000]', 'Artifact[VkmKLUCaMsYFCuGE0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('w6rw6rWE7VU37R1j', entrypoint='process_images') at 2026-07-30 06:14:10 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[QDPX1ljp0eCMz80o0000]', 'Artifact[Cvamog4G3a2XYGM80000]', 'Artifact[6uUjyphUD4D1Hixc0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

→ loaded Transform('fsUabwM8kuH30000', key='sc-imaging2.ipynb'), started new Run('8dXuSH96RrjxWsTM', entrypoint='process_images') at 2026-07-30 06:14:11 UTC
→ params: config_file_af='Artifact[voi8szTkmKPiahUA0000]', input_artifacts=['Artifact[Oww4y0yYuR8pxV9q0000]', 'Artifact[AhBvnNKg5yJcG6LU0000]', 'Artifact[AVRTVX9gEu4LrTAP0000]'], h5sc_schema='Schema[4yCtvnKU5EMSmWDG]', output_directory='processed_data'

Dataset already processed. Skipping.

example_artifact = ln.Artifact.filter(
    ulabels=ln.ULabel.get(name="scportrait single-cell images")
).first()

example_artifact.view_lineage()

Show code cell output Hide code cell output

ln.finish()

Show code cell output Hide code cell output

→ finished Run('JROGRV3Jcyc6PQfu') after 1m at 2026-07-30 06:14:12 UTC
